Tech4U P1 Port Splitter(P1H-203)

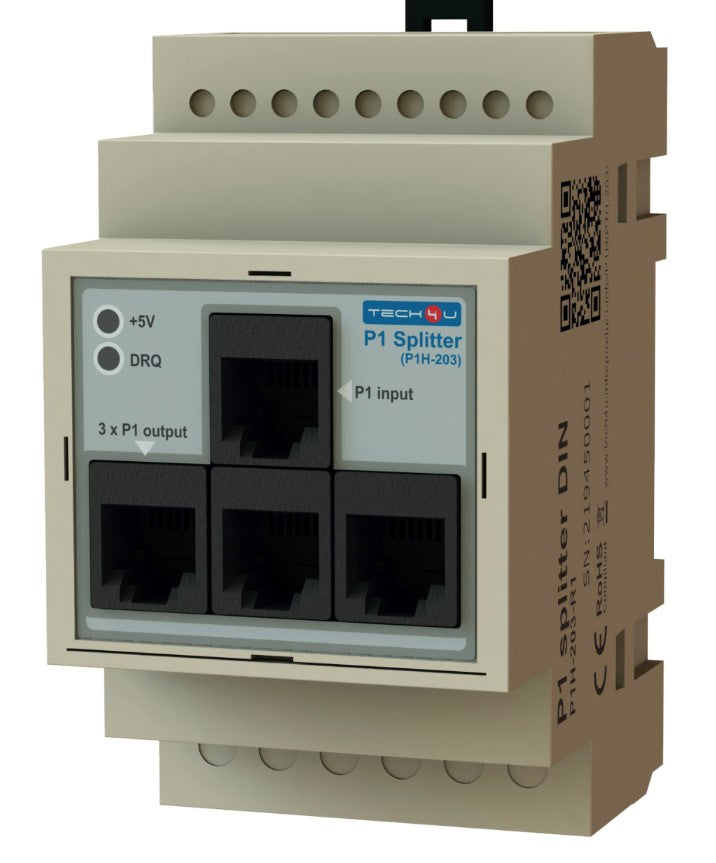

P1H-203 “P1 Port splitter DIN” device is designed to allow the simultaneous connection of three P1 modules to the Smart Meter. P1H-203 uses an active connection between all P1 ports. Major P1 port lines are connected to each other via active components. The signal on the DATA line is regenerated and separately transmitted to each P1 module. This allows for the usage of a longer RJ-12 cable. The “DATA Request” line is connected via internal logic, allowing independent data request per module. The device is equipped with two LEDs. One indicates the status of “DATA Request” line, and the other the status of “+5V line”.
